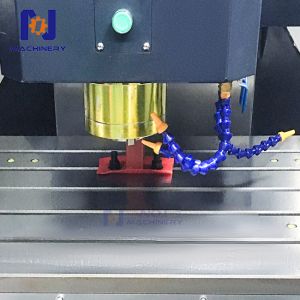

VMC1270 Vertical Milling Machine 4-axis Cnc Vertical Machining Center with Best Price
Application:
The CNC machine tool features an optimized structure and shape design, characterized by compactness, rational layout, and enhanced rigidity. It is capable of machining a wide range of workpieces, including flat plates, shells, and complex components such as molds and CAM-designed parts. The machine performs drilling, milling, and tapping operations, making it well-suited for batch production. It effectively meets the processing needs for drilling, tapping, and milling of small to medium-sized workpieces.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
| SPECIFICATIONS | Units | VMC1270 |
| Table size | mm | 1260*700 |
| X axis travel | mm | 1200 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Max. worktable load | kg | 1000 |
| T slot(number-width*pitch) | - | 5-18*110 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 11/15 |
| X/Y/Z rapid traverse speed | m/min | 24/24/18 |
| Cutting feed speed | mm/min | 1-6000 |
| Guide rail type | - | |
| Distance from spindle axis to column surface | mm | 750 |
| Distance between spindle nose and table surface | mm | 100-800 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Arm 24 |
| Max. tool diameter | mm | 78/120 |
| Max. tool weight | kg | 18 |
| Machine weight | kg | 8000 |
| Overall dimension(L*W*H) | mm | 3400*2900*3000 |
Product Display
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful
city,Zaozhuang,Shandong Province,China.We specialized in
manufacturing & exporting machinetools to the world for more than
30 years. We have got many international certifications such as
CE,ISO, WIPO, EAC,BV, TUV, SGS, and patents, Our machines have been
exported to morethan 100 countries and regions, and provide
long-term overseas technical guidance andafter-sales service for
these countries .We stick to the principle of "quality first,
service first,continuous improvement and innovation to meet the
customers" for the management.Strictly QC control with more than 24
steps testing processes.We wish to cooperatesincerely with friends
all over the world to realize mutual development.
