Best Selling CK6180 CNC Metal Lathe MachineVarious Processing Length
The CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate work piece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
Standard Configuration:

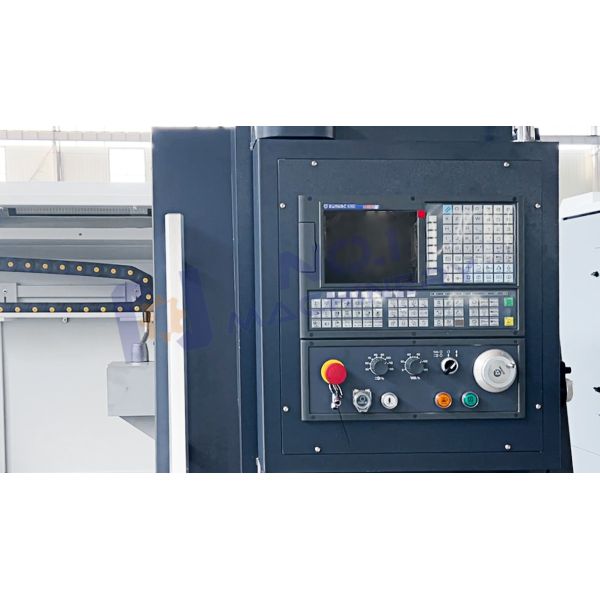

1. GSK 980 TDC
2. Spindle Unit A2-11/through hole 105
3. 300mm manual Chuck
4. The main spindle gear box 3 gears
5. 4-station tool holder
6. Bed guide width 600/755mm
| Item Model | Unit | CK6163 | CK6180 |
| Maximum turning diameter of bed | mm | 630 | 800 |
| Maximum diameter of rotation on skateboard | mm | 350 | 450 |
| Maximum workpiece length | mm | 1000-3000 | 1000-5000 |
| Width of guide rail | mm | 550 | 600/755 |
| Spindle hole | mm | 105 | 105 |
| Spindle end form | - | A2-11 | A2-11 |
| Spindle speed series | | 3-speed infinitely variable speed | 4-speed infinitely variable speedQ |
| Spindle speed range | rpm | 21-150/66-500/162-835 | 30-84/53-150/125-350/300-835 |
| Type of tool holder | - | 4-station electric tool holder | 4-station electric tool holder |
| Tool dimensions | mm | 32X32 | 32X32 |
| X/ZAxis stroke | mm | 340/1000-3000 | 340/1000-3000 |
| X/Z axis fast feed speed | mm/min | 6000/8000 | 6000/8000 |
| Diameter of tailstock sleeve | mm | 75 | 100 |
| Taper of tailstock sleeve | - | MT6 | MT6 |
| Tail seat sleeve stroke | mm | 250 | 250 |
| Main motor power | kw | 11 | 11 |
| Cooling motor power | kw | 0.125 | 0.125 |
| Weight of machine tool | kg | 2800-4200 | 4000-7000 |
| External dimensions | mm | 3300-5200X1820X1780 | 2800-7200X1820X1780 |
Product Display:
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful
city,Zaozhuang,Shandong Province,China.We specialized in
manufacturing & exporting machinetools to the world for more than
30 years. We have got many international certifications such as
CE,ISO, WIPO, EAC,BV, TUV, SGS, and patents, Our machines have been
exported to morethan 100 countries and regions, and provide
long-term overseas technical guidance andafter-sales service for
these countries .We stick to the principle of "quality first,
service first,continuous improvement and innovation to meet the
customers" for the management.Strictly QC control with more than 24
steps testing processes.We wish to cooperatesincerely with friends
all over the world to realize mutual development.
