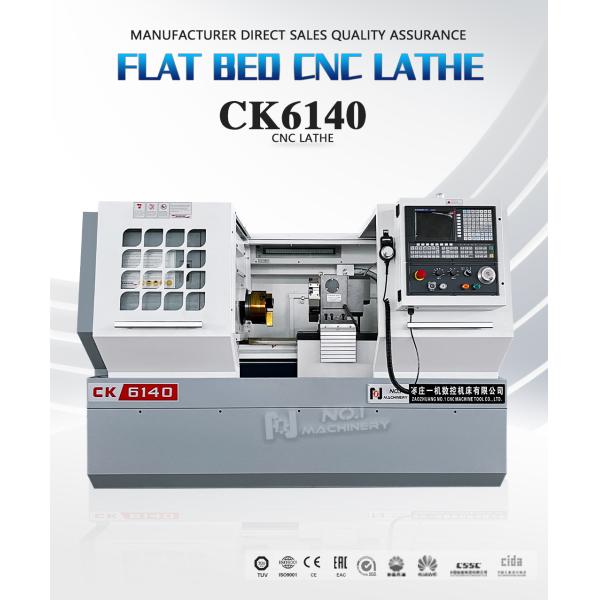

CK6140 Cnc Lathe Machine High Precision Flat Bed Lathe Cnc Machine for Metal
Product Description:
The CK6140 CNC lathe ensures extremely high precision processing. It can accurately machine various rotary surfaces such as outer circles, inner holes, conical surfaces and threads, meeting the strict requirements of part machining accuracy. Equipped with an advanced CNC system, this lathe enables automated processing. By programming, it can continuously and stably complete a series of machining operations, which significantly improves production efficiency and reduces labor intensity.
Standard Configuration:
1. GSK 980 TDC
2. Spindle Unit A2-8/through hole 52
3. 200mm manual Chuck
4. The main shaft gear box has 2 gears
5. 4-station tool holder
6. Bed guide width 400mm
optional Configuration:
1. 6 station electric knife tower
2.250mm hydraulic Chuck/hydraulic Chuck
3.System: STNTEC, Mitsubishi, Siemens, FANUC
4.Spindle through hole 82
5.7.5 kw servo main motor
Product Specification:
| Main technical data | CK6140-750mm | CK6140-1000mm | CK6140-1500mm |
| The Max. Body Diameter | Φ400 |
| The Max. Carriage Diameter | Φ200 |
| The Max. Cutting Diameter | Φ400 |
| The Max. Length Diameter | 750mm | 1000mm | 1500mm |
| X/Z axis travel | 280/750mm | 280/1000mm | 280/1500mm |
| The X/Z axis minimum displacement unit | 0.001 |
| Spindle hole | Φ52 |
| Taper of spindle bore | 1:20 |
| Spindle series | continuously |
| The limit speed of spindle | 150-2000 |
| Work piece clamping way | hydraulic chuck |
| The main moto power | 5.5kw |
| Frequency converter | 11 |
| X/Z axis | 6/6 |
| Fast moving speed of X/Z axis | 5/8 |
| Turret type | 4 Electric tool rest at station |
| Bar size | 20*20 |
| Repetitive positioning accuracy | ≤0.004 |
| The tail seat type | HAVE |
| Diameter of tail stock sleeve | Φ60 |
| Stroke of tail stock sleeve | 100 |
| Tail stock center hole | MT4 |
| Weight of machine | 1560 |
| Machine dimensions | 2200×1160×1620 | 3230*1280*1640 | 4200×1160×1620 |
| Power demand | 10kw/20A |
| Weight | 1800 | 2500 | 3500 |
Product Display:
