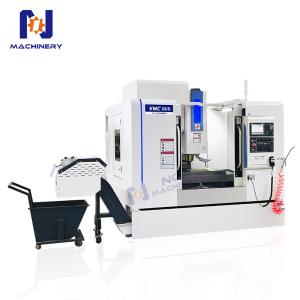

VMC866 Cnc Milling Machine 3 Axis Vertical Machining Center with Low Price
Product Description:
The VMC866 is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features:
1. Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
2. SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements.
3. Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy.
4. Schneider safety electrical components Quick plug as standard, Make the machine performance better.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
| Item Model | Unit | VMC866 |
| Size of worktable | mm | 1000*600 |
| T-shaped groove for table | mm | 5-18*100 |
| Maximum load on table | kg | 550 |
| X/Y/Z rail width | mm | 35 or 45/45/45 |
| X/Y/Z ball screw specification | mm | 4016/4016/4016 |
| X/Y/Z Axis stroke | mm | 800*600*600 |
| X/Y/Z motor torque | NM | 18/18/22(Contracting brake) |
| Spindle face to table position | mm | 120-720 |
| Distance from Spindle Center to column | mm | 626 |
| Cutting feed rate | mm/min | 1-8000 |
| X/Y/Z axis fast feed | m/min | 48/48/48 |
| Spindle end taper/diameter | mm | BT40-150 |
| Spindle motor power | kw | 7.5/11 |
| Maximum spindle speed | rpm | 8000 |
| Form of Tool Bank | - | Disc |
| The capacity of knife storage | tools | 24 |
| Maximum tool diameter/weight | mm/kg | 78/120/8 |
| Tool change time | sec | 2.5 |
| Positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| The smallest unit of positioning | mm | 0.005 |
| Weight of machine tool | kg | 6000 |
| External dimensions | mm | 2800*2400*2700 |
Product Display
