VMC1370 Big Cnc Milling Machine 3 Axis Vertical Machining Center with Fanuc Control Syste
CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening. Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
| Item Model | Unit | VMC1370 |
| Size of worktable | mm | 1400*700 |
| T-shaped groove for table | mm | 5-22*122 |
| Maximum load on table | kg | 1000 |
| X/Y/Z rail width | mm | 45/45/55 |
| X/Y/Z ball screw specification | mm | 5010/5010/5010 |
| X/Y/Z Axis stroke | mm | 1300*700*700 |
| X/Y/Z motor torque | NM | 18/28/20 |
| Spindle face to table position | mm | 140-840 |
| Distance from Spindle Center to column | mm | 785 |
| Cutting feed rate | mm/min | 1-8000 |
| X/Y/Z axis fast feed | m/min | 24/24/24 |
| Spindle end taper/diameter | mm | BT40/50-150 |
| Spindle motor power | kw | 15 |
| Maximum spindle speed | rpm | 8000 |
| Form of Tool Bank | - | Disc |
| The capacity of knife storage | tools | 24 |
| Maximum tool diameter/weight | mm/kg | 78-120/7.8 |
| Tool change time | sec | 2.5 |
| Positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| The smallest unit of positioning | mm | 0.005 |
| Weight of machine tool | kg | 7000/7500 |
| External dimensions | mm | 3700*2750*2950 |

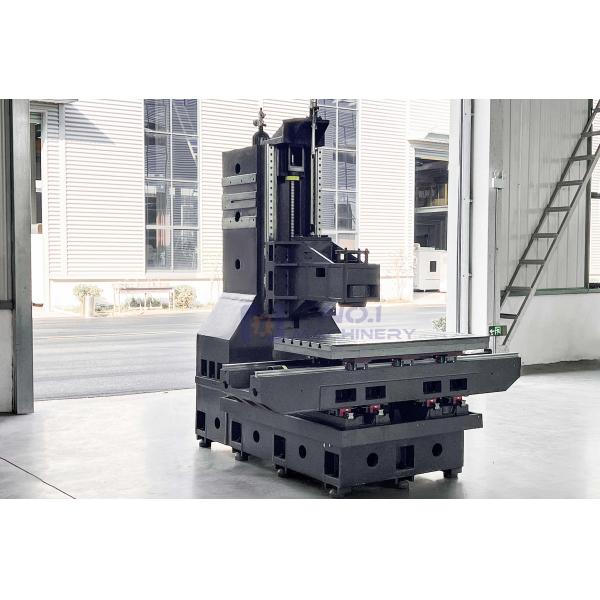

Product Display
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful
city,Zaozhuang,Shandong Province,China.We specialized in
manufacturing & exporting machinetools to the world for more than
30 years. We have got many international certifications such as
CE,ISO, WIPO, EAC,BV, TUV, SGS, and patents, Our machines have been
exported to morethan 100 countries and regions, and provide
long-term overseas technical guidance andafter-sales service for
these countries .We stick to the principle of "quality first,
service first,continuous improvement and innovation to meet the
customers" for the management.Strictly QC control with more than 24
steps testing processes.We wish to cooperatesincerely with friends
all over the world to realize mutual development.
·
