High Precision VMC1160 Vertical Machining Center CNC Milling Machine for Metal Cutting
The CNC machine tool features an optimized structure and shape design, characterized by compactness, rational layout, and enhanced rigidity. It is capable of machining a wide range of workpieces, including flat plates, shells, and complex components such as molds and CAM-designed parts. The machine performs drilling, milling, and tapping operations, making it well-suited for batch production. It effectively meets the processing needs for drilling, tapping, and milling of small to medium-sized workpieces.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.

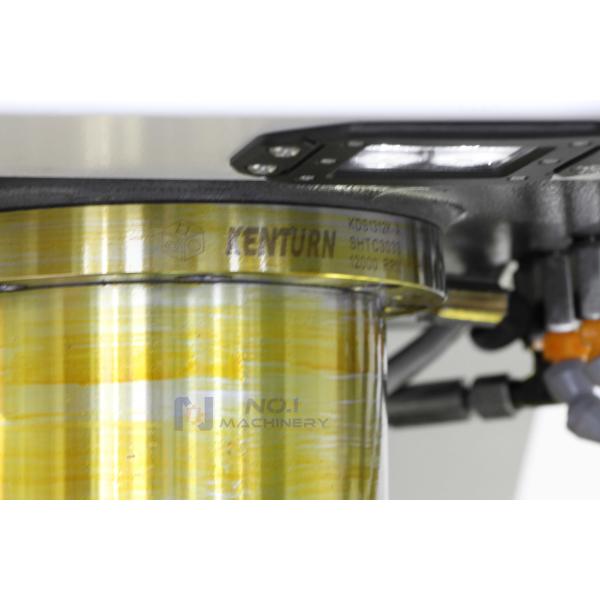

5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Optional configuration:
1. Siemens, FANUC, Mitsubishi, GSK, KND
2. spindle RPM 10000 Timingbelt /12000 Direct drive
3.Coolant through spindle(CTS)
4.Workpiece measuring probe
5.Screw type chip conveyor
6.4- axis /5-axis
Product Specification:
| Item Model | Unit | VMC1160 |
| Size of worktable | mm | 1200*600 |
| T-shaped groove for table | mm | 5-18*100 |
| Maximum load on table | kg | 800 |
| X/Y/Z rail width | mm | 45/45/45 |
| X/Y/Z ball screw specification | mm | 4012/4012/4012 |
| X/Y/Z Axis stroke | mm | 1100*600*600 |
| X/Y/Z motor torque | NM | 18/18/28(Contracting brake) |
| Spindle face to table position | mm | 120-720 |
| Distance from Spindle Center to column | mm | 650 |
| Cutting feed rate | mm/min | 1-8000 |
| X/Y/Z axis fast feed | m/min | 24/24/24 |
| Spindle end taper/diameter | mm | BT40-150 |
| Spindle motor power | kw | 1 |
| Maximum spindle speed | rpm | 8000 |
| Form of Tool Bank | - | Disc |
| The capacity of knife storage | tools | 24 |
| Maximum tool diameter/weight | mm/kg | 78/120/8 |
| Tool change time | sec | 2.5 |
| Positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| The smallest unit of positioning | mm | 0.005 |
| Weight of machine tool | kg | 6800 |
| External dimensions | mm | 3200*2450*2650 |
Product Display:
